Rentals

Why buy when you can rent at a fraction of the cost?

Technical Support and Metrology Services Available for all Rentals

Browse Through Our Selection of Portable Machine Tools Available for Rentals

All of these machines are available for rentals.

Portable line boring equipment to bore from 1 1/2" to 100"

Flange facing machines out to 200"

Portable lathes 1 1/2" to 24"

Portable milling machines 36"x8" up to 192"x116"

In-line turning machines

Portable keyway mills

Laser Tracker and Track Arms with reports and 3D scanner are available for precise and accurate metrology.

See Below for the Full Equipment List

2015-02-20 14.08.32

Partial Equipment Gallery

Climax BB8100 with facing arm

Climax BB8100 with boring head

BB6100

BB7100 with various bar lengths

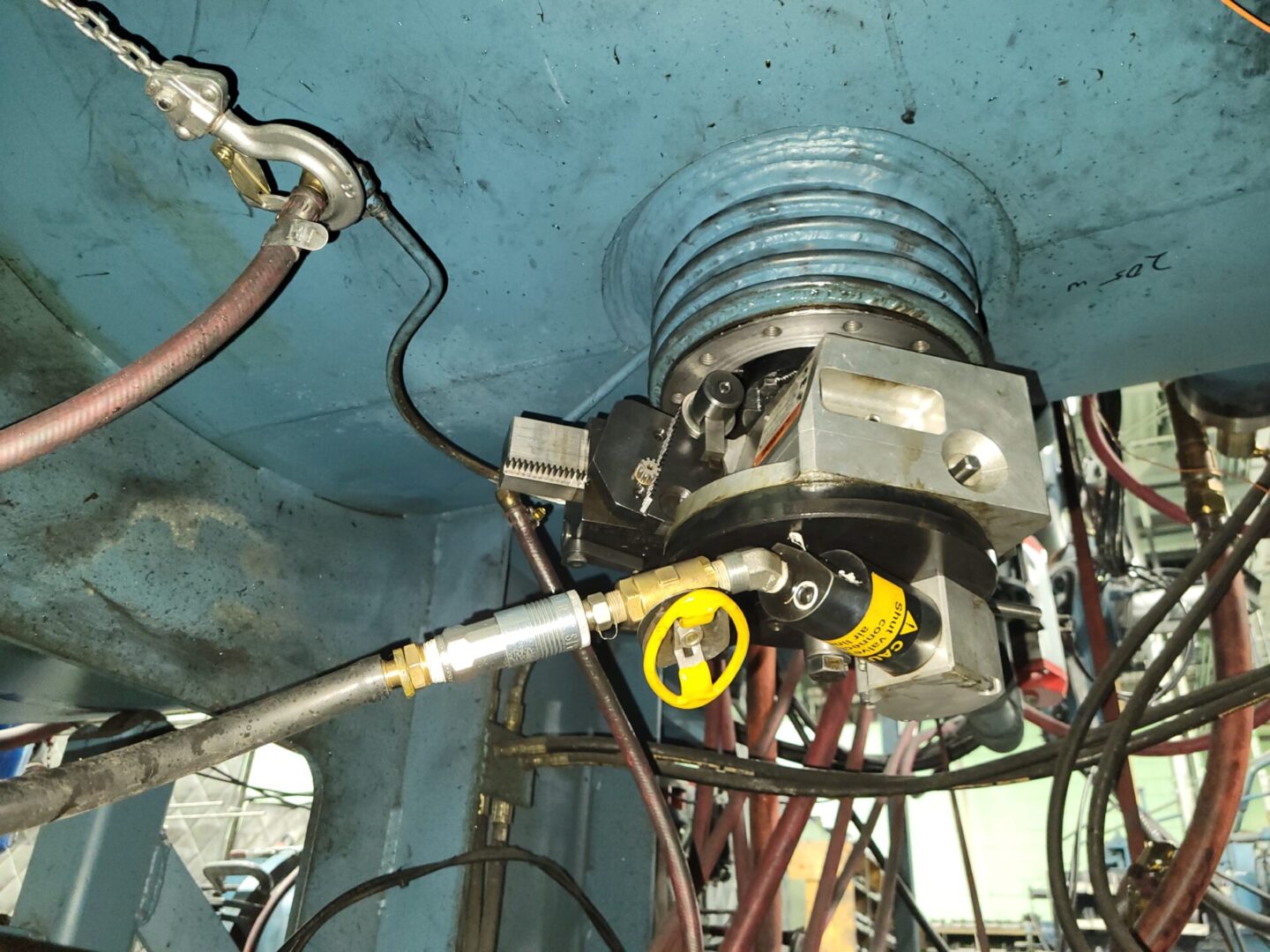

FF5000

Climax FF6300

Climax FF8200

York InLine Turning 1000

York ILT 1600

Keyway

Climax LM6200

Climax LM 5200

Climax PL2000

Climax PL4000

Climax CM6200

Climax PM6000

Climax BB5000

Climax BW300 with 12" stroke

In House Machine Shop

Climax FF8200 with Milling Head

Equipment List

Climax CM6200 (Circular Mill) Diameter of 73.5" to 200", Single Point and Milling, ID Chuck, Surface Mount, 25 HP HPU

Climax LM6200 (Linear Mill) Modular configuration, bed lengths 4’ through 16’, 2’ bed sections bolted together for changeable increments on the linear configuration, or separately with the gantry kit using rams for the gantry configuration, 48”, 82”, and 116” rams, spindle with 8” travel, Z slide with 7” travel, and NMTB50 taper

Climax LM5200 (linear Mill) Modular configuration, 6’ bed in linear or gantry, ram lengths 26” and 44”, NMTB40 taper, Spindle 4” travel

Climax PM2000 (Portable Mill) with Keyway Mill adaptor, 6” to 24” shafts, 20” travel and standard milling

Climax PM6000 (Portable Mill) bed length 13’4”, travel of 12’, ram length 60”, travel 60”, inversion adaptor to mill overhead

Climax KM300 Keyway mill 1 1/2" to 10" shafts, 6" travel

Climax FF5000 (Flange Facer) diameter of 5” to 24”, Single Point, ID Chuck

Climax FF5300 (Flange Facer) diameter of 5.7” to 40”, Single Point, ID Chuck, Surface Mount

Climax FF6300 (Flange Facer) diameter of 11.8” to 60”, Single Point and Milling, ID Chuck, Surface Mount

Climax FF8200 (Flange Facer) diameter of 45” to 120”, Single Point and Milling, ID Chuck, Surface Mount

Climax PL2000 (Portsble Lathe) 1 ¼” to 9” diameter, 14” travel, end mount

Climax PL4000 (Portsble Lathe) 8" to 24" diameter, 27" travel, end mount

York 1000 In Line Turning Machine, in line turning lathe, 3” to 10” diameter, 15” travel 4" to 10"

York 1600 In Line Turning Machine, in line turning lathe, 8” to 16” diameter, 27” travel

(3) Climax BB3000 (Boring Bar) with bars out to 8’, 1 1/2 “ to 6” diameter

(2) Climax BB4000 (Boring Bar) with bars out to 8’, 2” to 10” diameter

(2) Climax BB5000 (Boring Bar) with bars out to 16’, 2 1/2" to 24” diameter, with all accessories for blind bores and facing

Climax BB6100 (Boring Bar) with 8’ and 12’ bars, 9” to 40” diameter, ID bearing, also available with 22" 2 arm boring/facing head

Climax BB7100 (Boring Bar) with 8’ and 12’ bars, 20’ gun drilled bar, 10 ½” to 60” diameter, 4 four arm bearings, ID bearing, facing head

Climax BB8100 (Boring Bar) with 14’ bar, 15” to 96” diameter, 4 four arm bearings, ID bearing, facing head to 100”

Climax BW1000 (Bore Welder) axial travel of 9”, 1 ½” to 57” diameter

Climax BW2600 (Bore Welder) axial travel of 9”, 1 ½” to 57” diameter

Climax BW3000 (Bore Welder) axial travel of 6”, 1 ½” to 57” diameter

Climax BW3000 (Bore Welder) axial travel of 12”, 1 ½” to 57” diameter

Climax BW5000 (Bore Welder) axial and radial travel of 30”, 12” to 120” diameter, ID, OD and conical surfaces

Metrology Equipment for Services and Rentals

• Faro Vantage E, 35-meter, 70-meter total range

Faro Vantage S, 80-meter, 160-meter total range

Faro Quantum Max S Arm, 4-meter range

Faro Quantum Max M Arm, 4-meter range

Track Arm kit to locate the arms anywhere within the tracker’s measurement volume

Laser Line Probes, Faro XS, Faro XP

Test Equipment, Scale bars for both Trackers and Arms, 3-point gauge, Brunson KinAiry system for measuring the maximum permissible error of the trackers and publishing a report chart

Software, both Cam 2 and Polyworks

Depth Camera, Dot 3D products, DPI-10 Scanner, Brunson’s Scale bars with targets to compensate for temperature

The list is incomplete of the in-house equipment including stands and accessories
