Equipment

Browse Through Our Selection of Portable Machine Tools

Laser Tracker and Track Arms with reports and 3D scanner are available for precise and accurate metrology

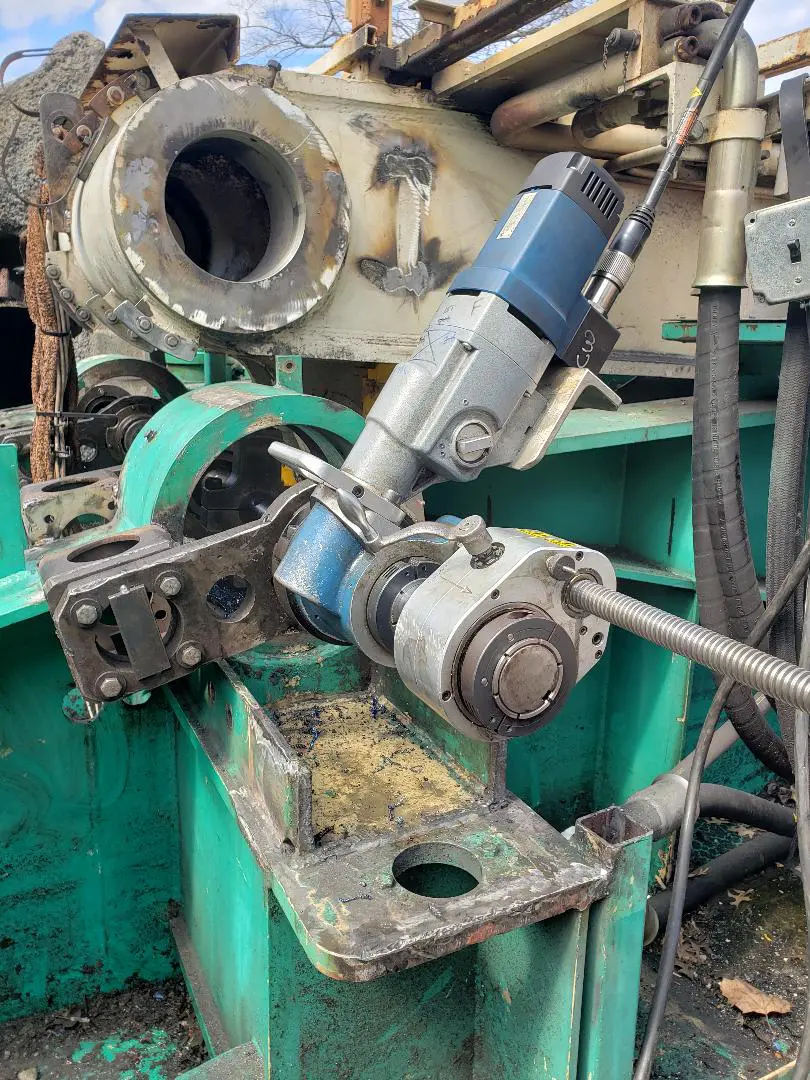

Portable line boring equipment to bore from 1 1/2" to 100"

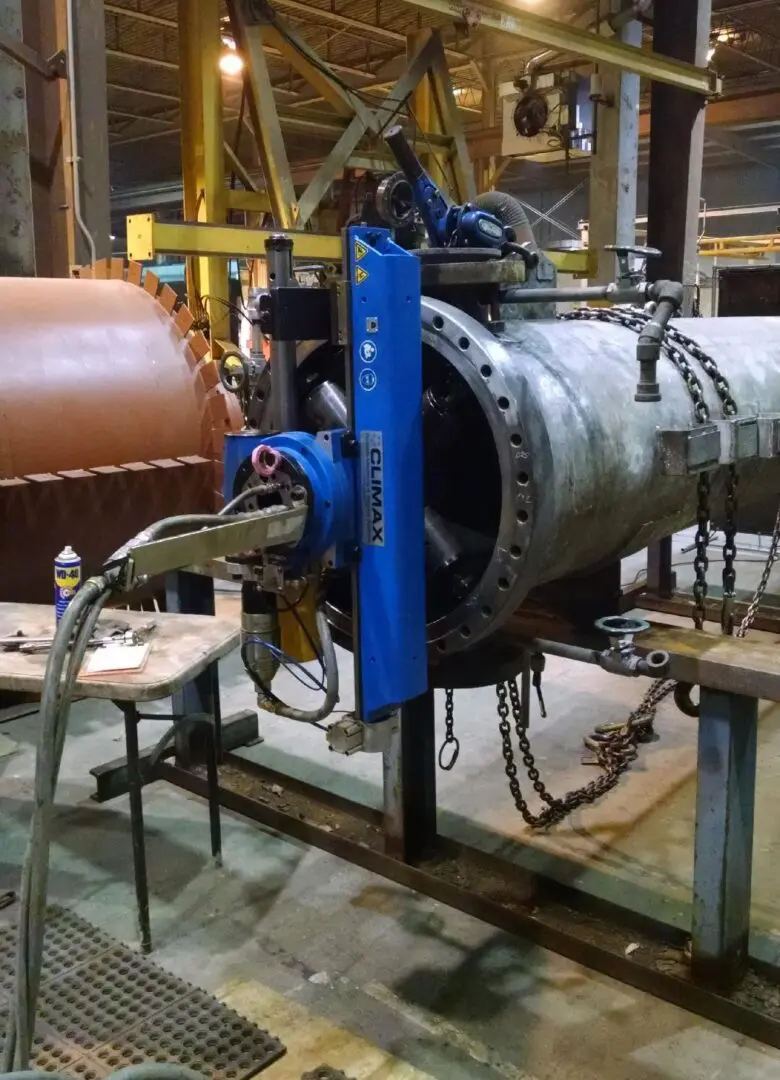

Flange facing machines out to 200"

Portable lathes 1 1/2" to 24"

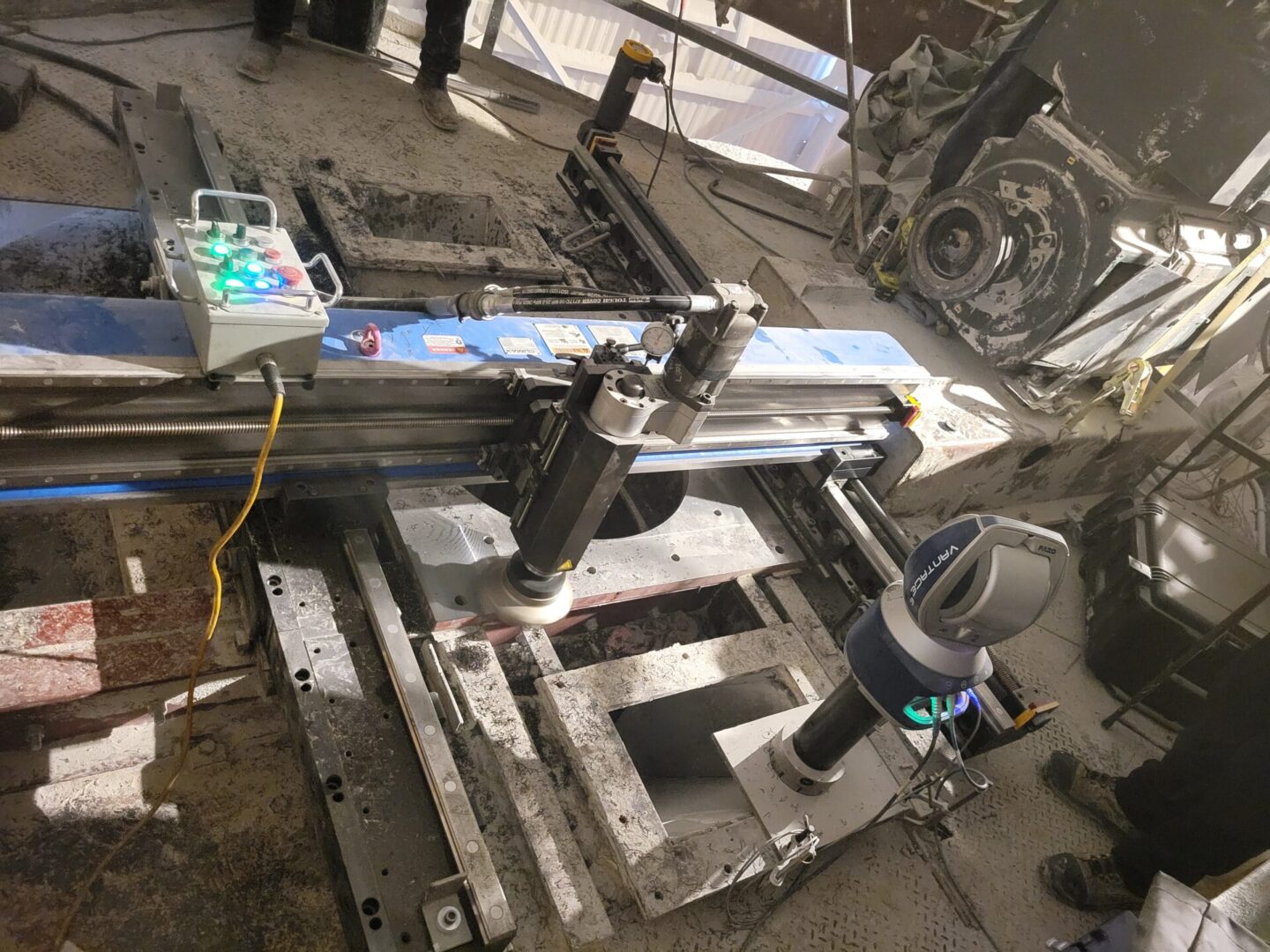

Portable milling machines 36"x8" up to 192"x116"

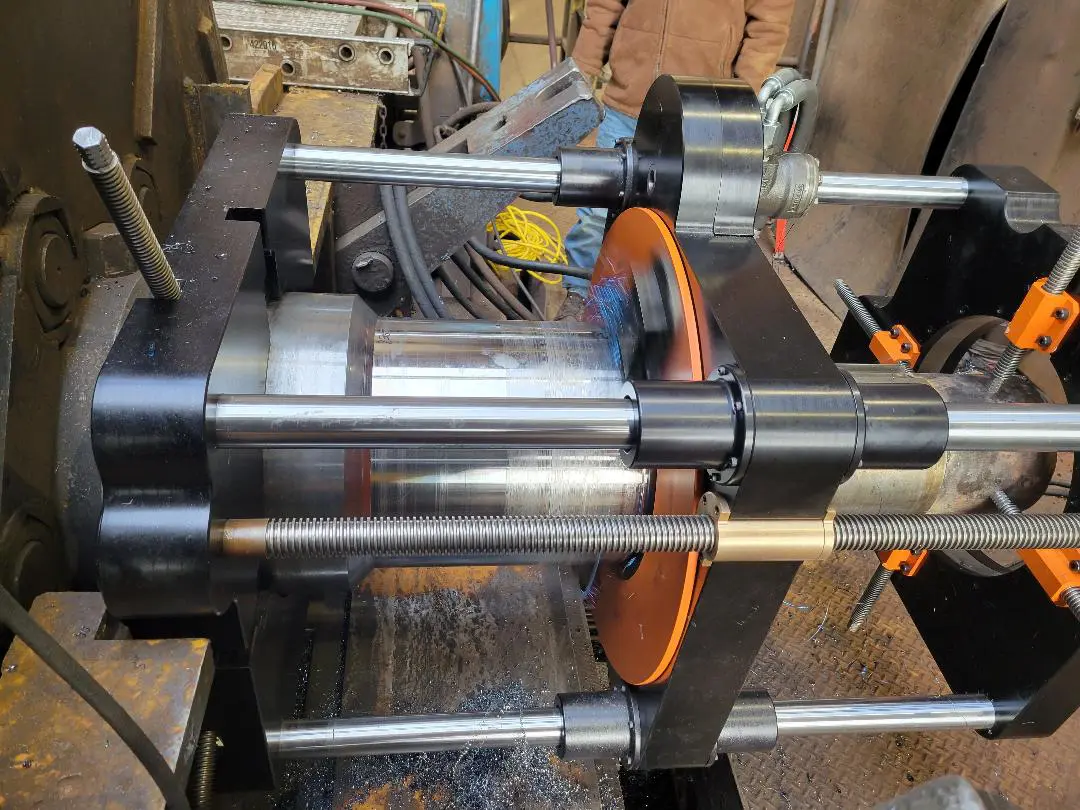

In-line turning machines

Portable keyway mills

Mobile machine shop

Large industrial service truck with 25-ton radio remote crane

Service trucks with cranes, air, power, welders, tools

In-house machine shop

See Below for the Full Equipment List

2015-02-20 14.08.32

Partial Equipment Gallery

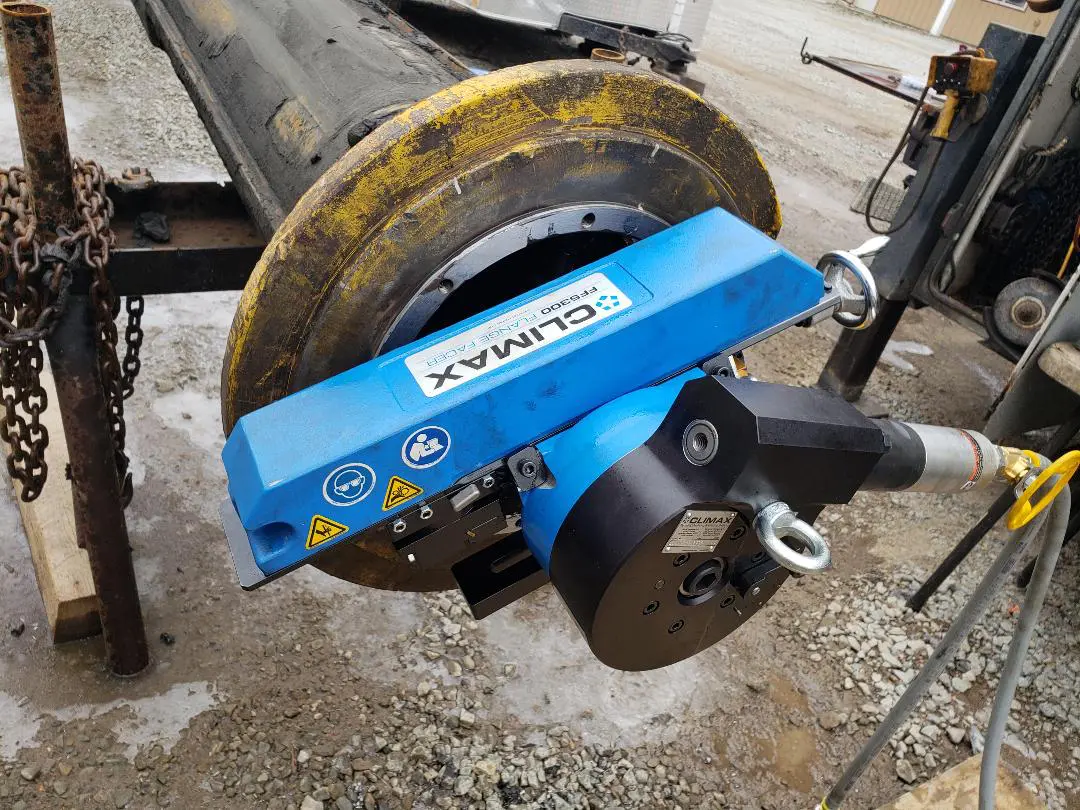

Climax FF5000

Climax FF6300

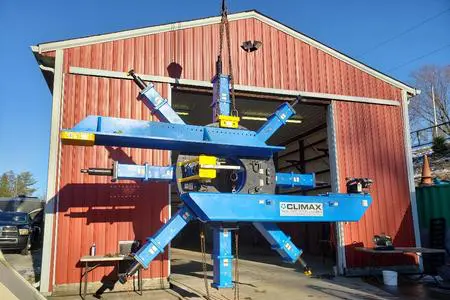

Climax FF8200

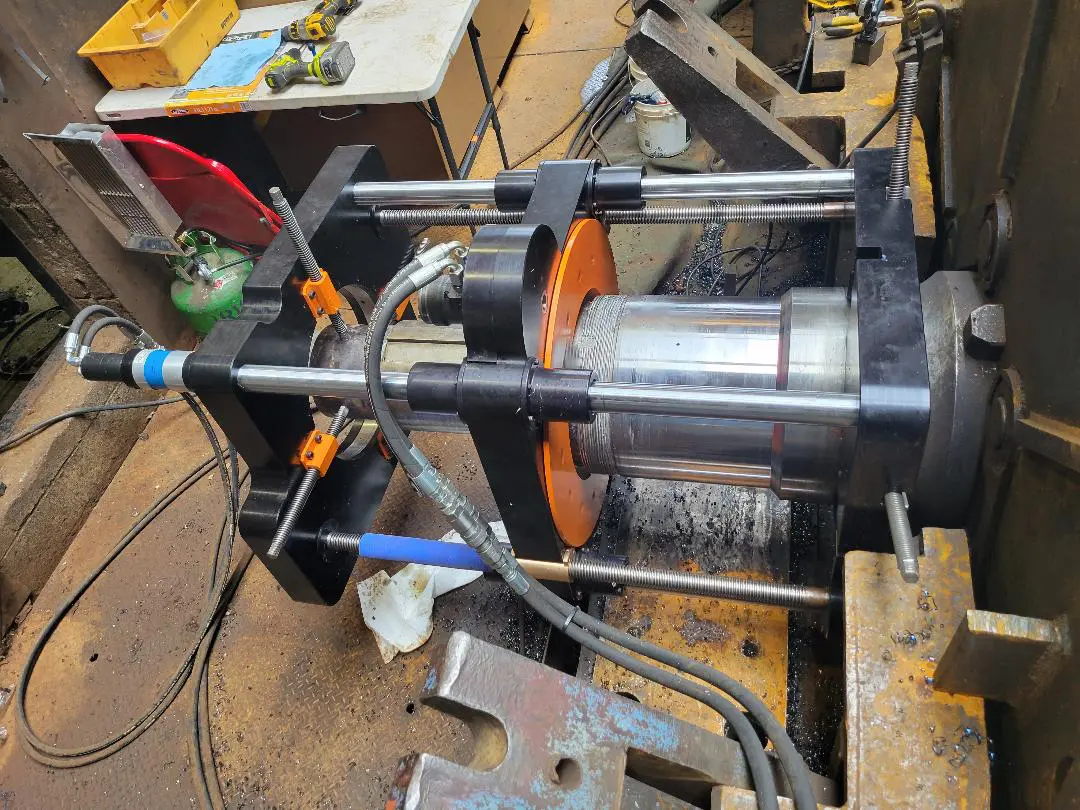

York InLine Turning 1000

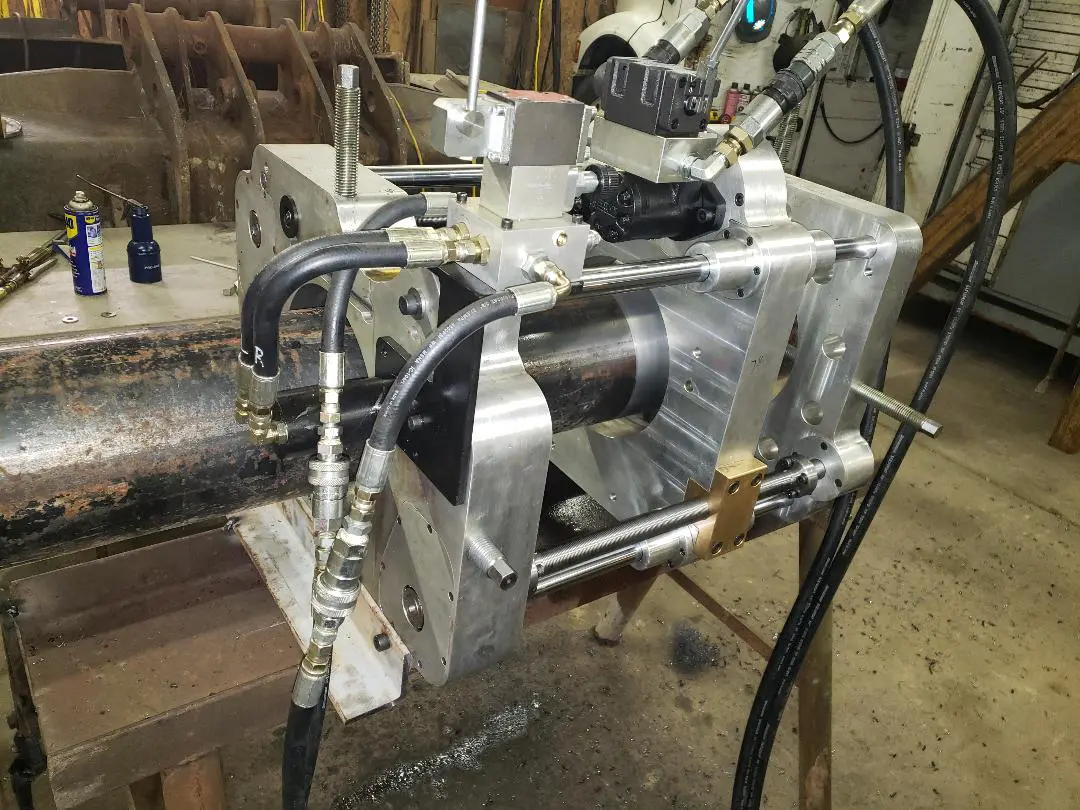

York ILT 1600

Climax PM2000

Climax LM6200

Climax LM 5200

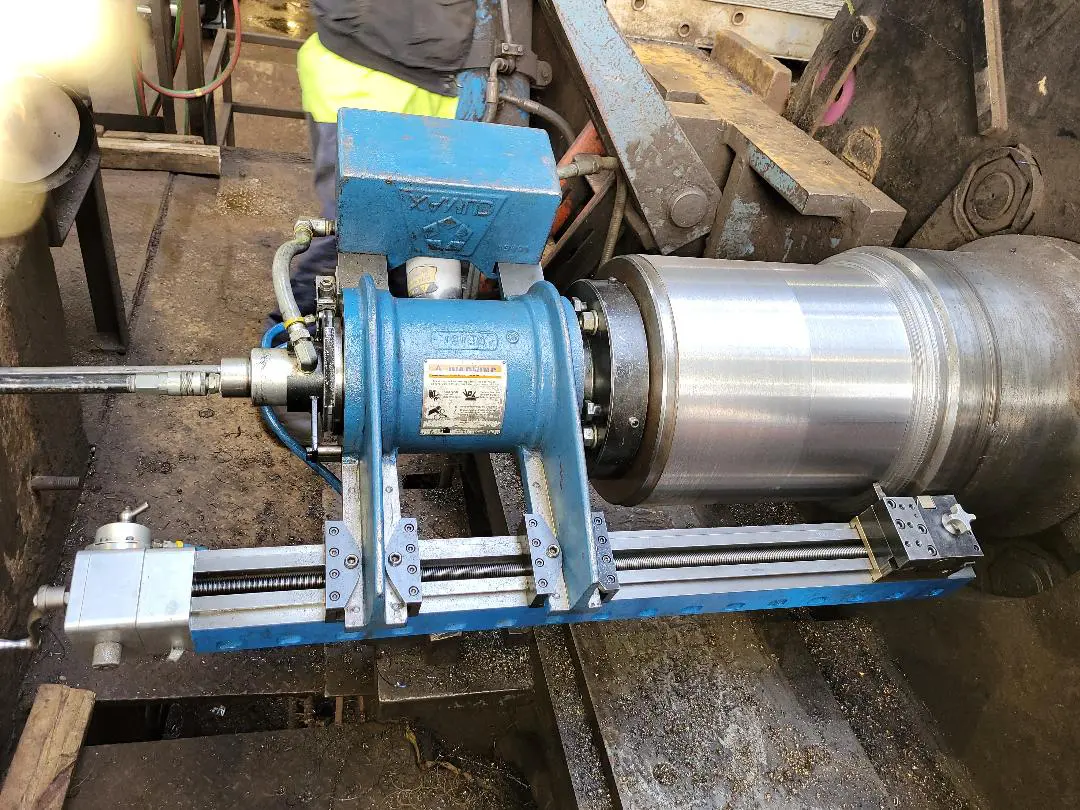

Climax PL2000

Climax PL4000

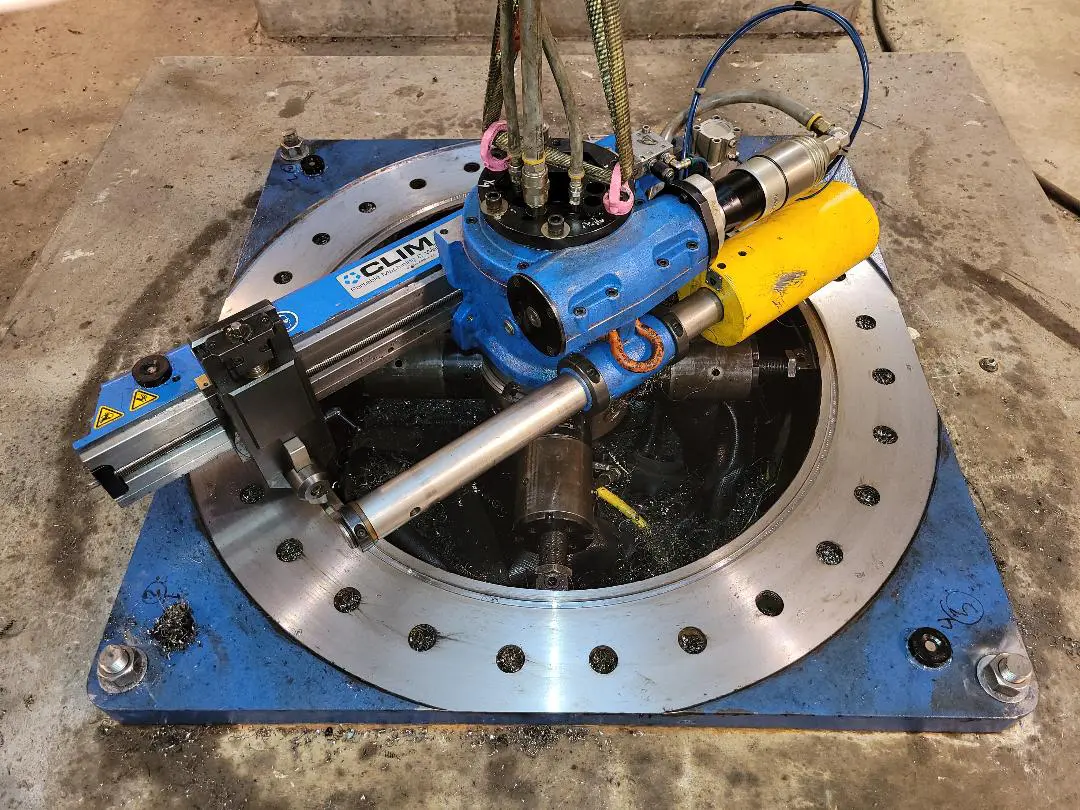

Climax CM6200

Climax PM6000

Climax BB5000

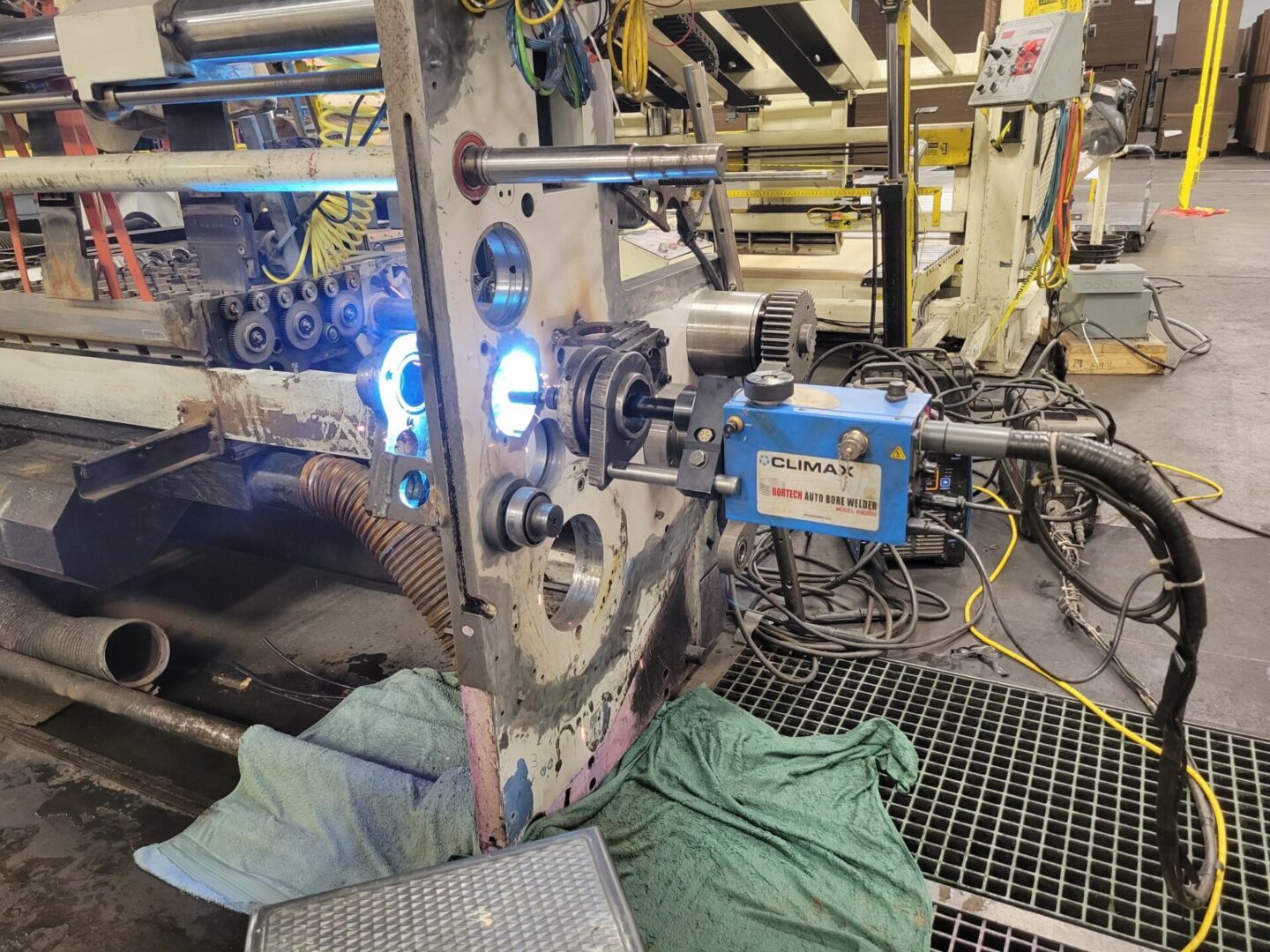

Climax BW300 with 12" stroke

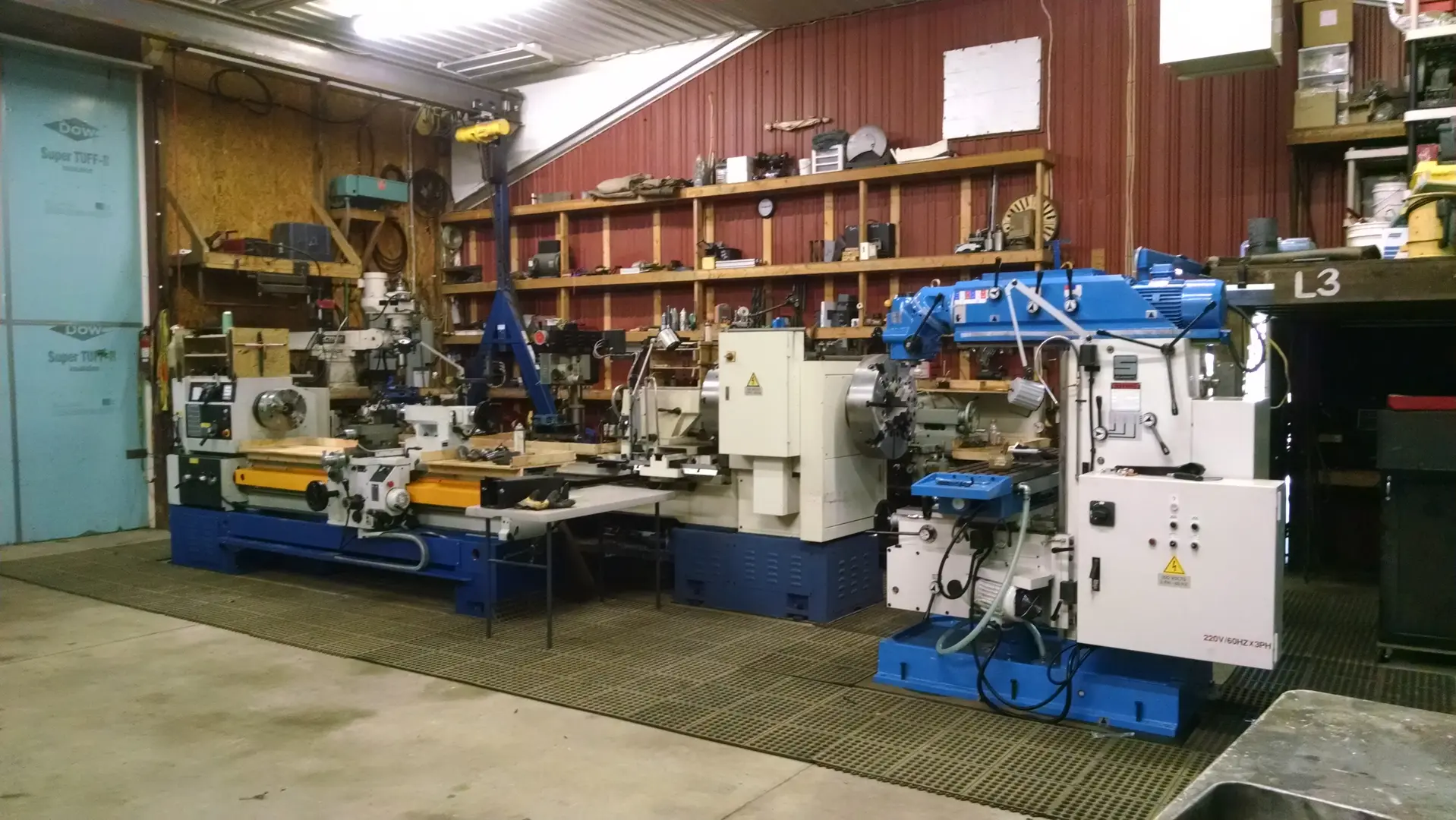

In House Machine Shop

Climax FF63000 with Milling Head

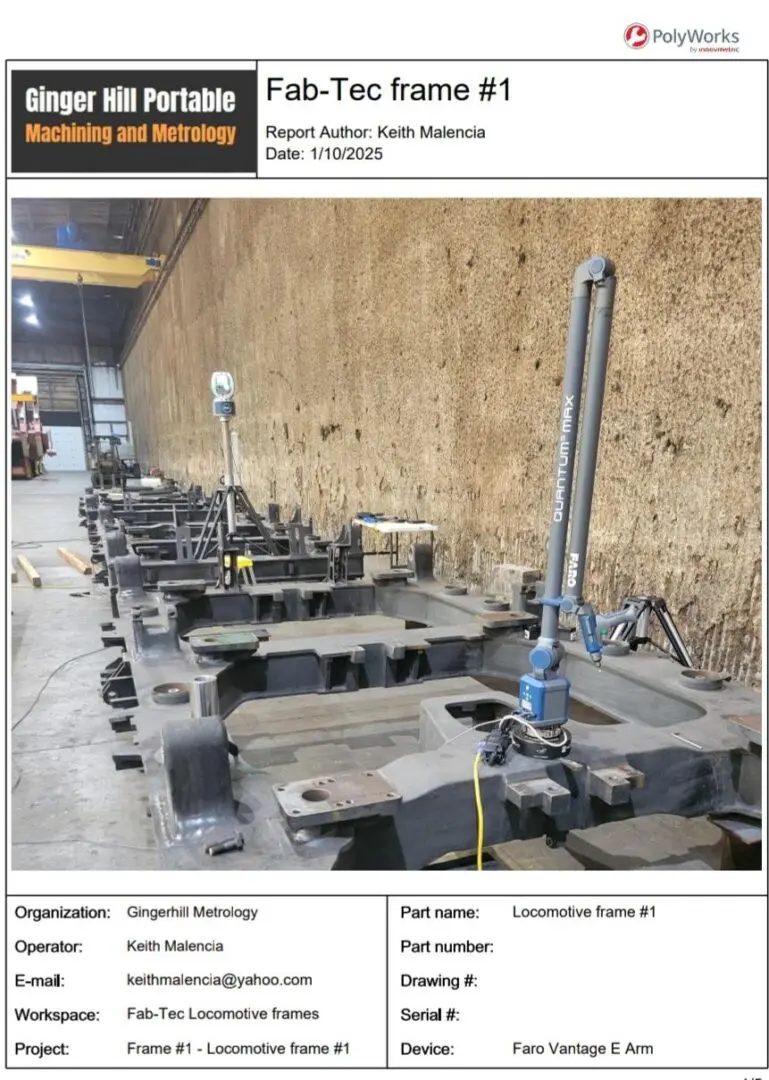

Metrology Equipment

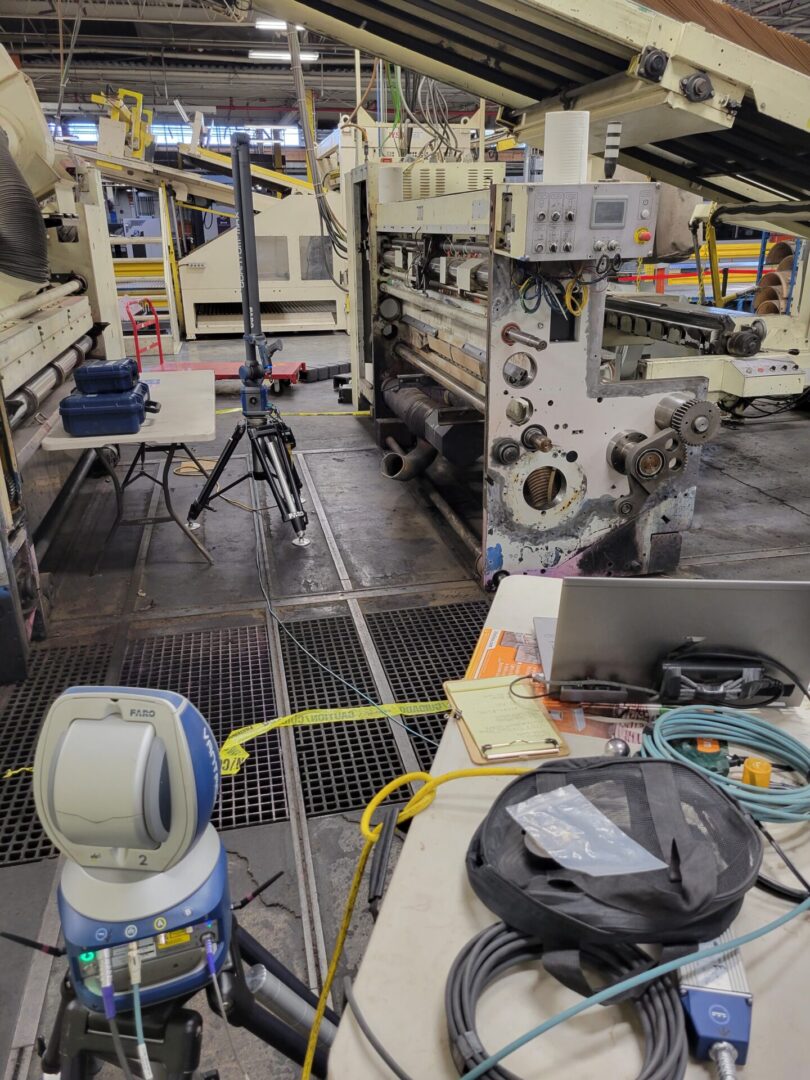

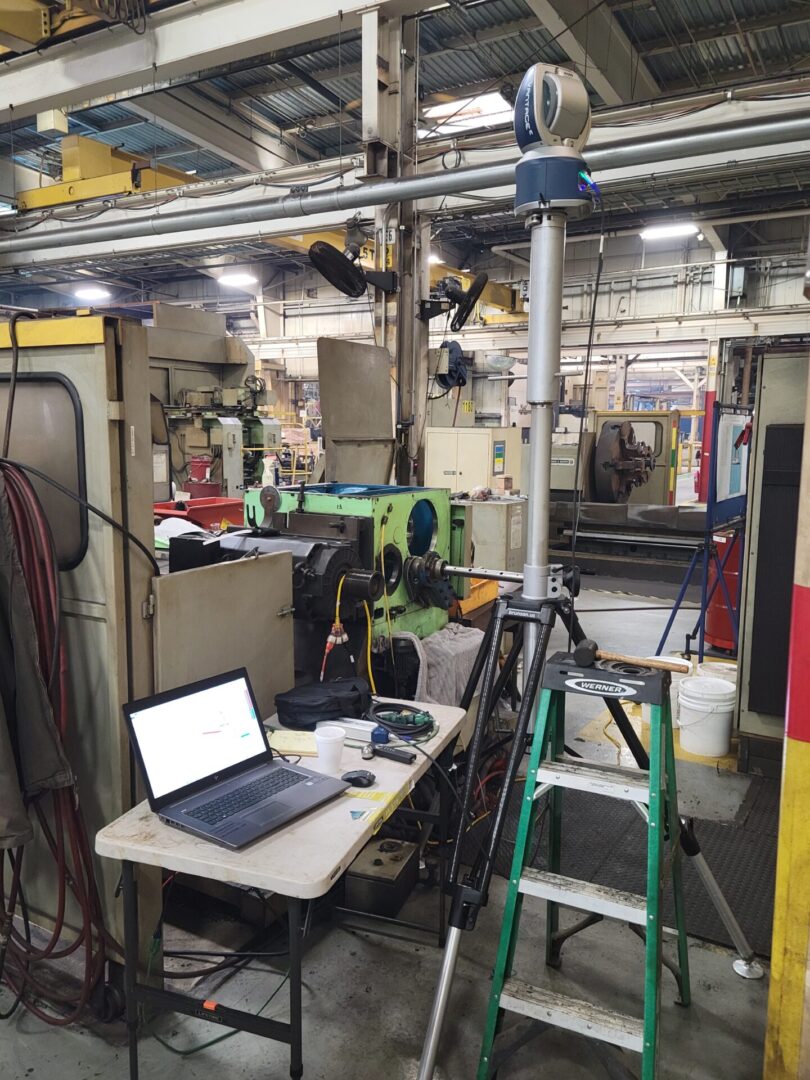

• Faro Vantage E, 35-meter, 70-meter total range

Faro Vantage S, 80-meter, 160-meter total range

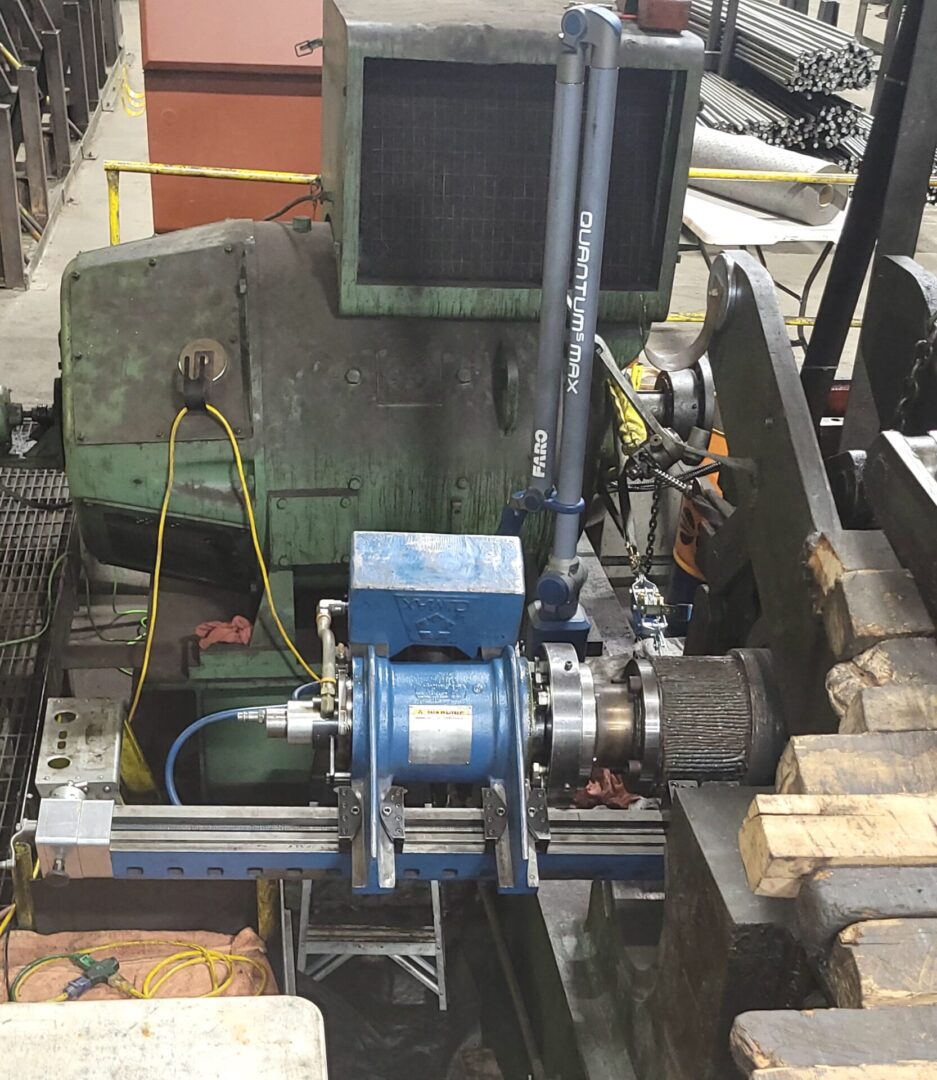

Faro Quantum Max S Arm, 4-meter range

Faro Quantum Max M Arm, 4-meter range

Track Arm kit to locate the arms anywhere within the tracker’s measurement volume

Laser Line Probes, Faro XS, Faro XP

Test Equipment, Scale bars for both Trackers and Arms, 3-point gauge, Brunson KinAiry system for measuring the maximum permissible error of the trackers and publishing a report chart

Software, both Cam 2 and Polyworks

Depth Camera, Dot 3D products, DPI-10 Scanner, Brunson’s Scale bars with targets to compensate for temperature

The list is incomplete of the in-house equipment including stands and accessories

Full Equipment - Downloadable Equipment List

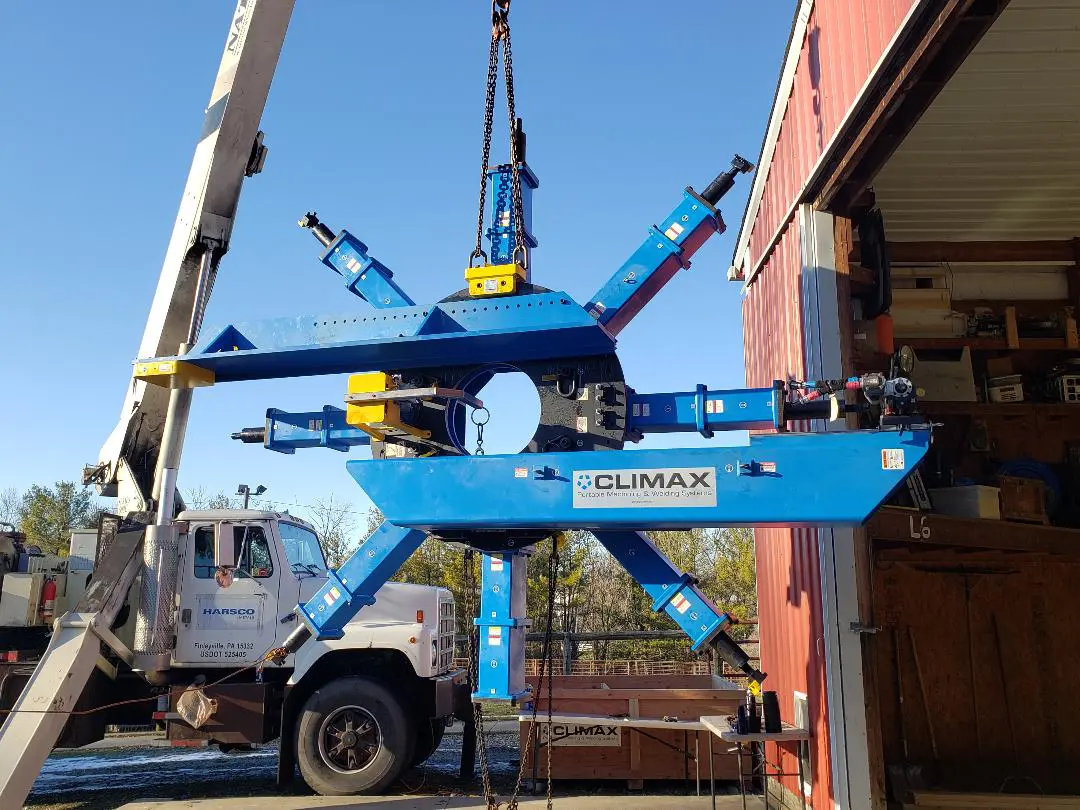

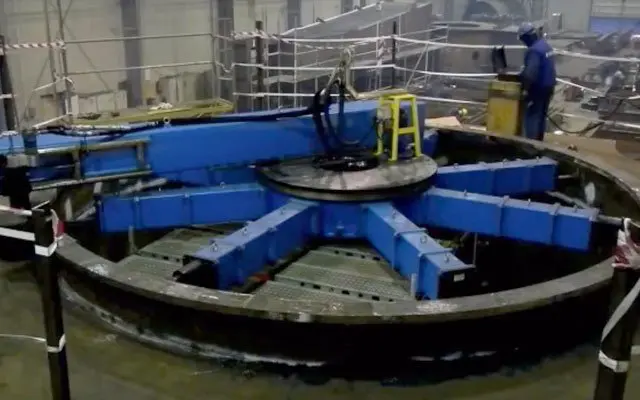

Climax CM6200 Diameter of 73.5" to 200", Single Point and Milling, ID Chuck, Surface Mount, 25 HP HPU

Climax LM6200 Modular configuration, bed lengths 4’ through 16’, 2’ bed sections bolted together for changeable increments on the linear configuration, or separately with the gantry kit using rams for the gantry configuration, 48”, 82”, and 116” rams, spindle with 8” travel, Z slide with 7” travel, and NMTB50 taper

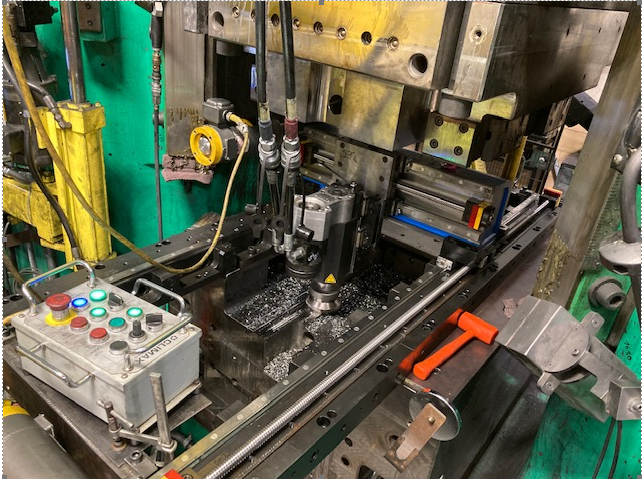

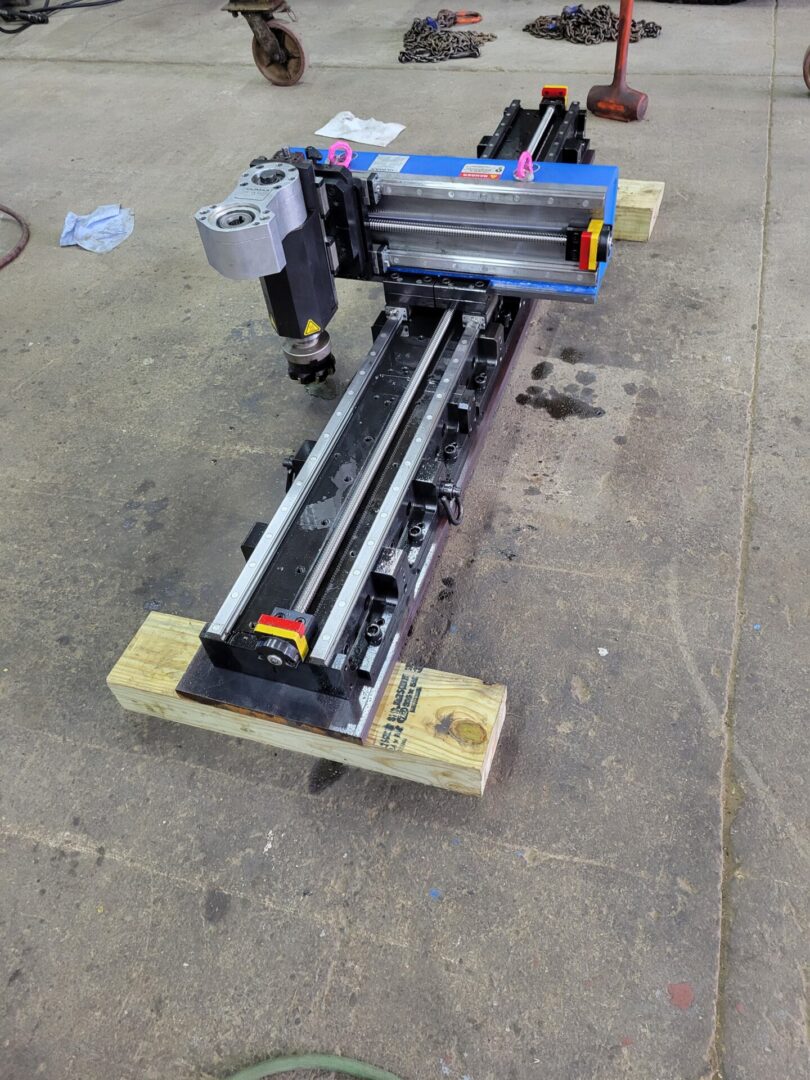

Climax LM5200 Modular configuration, 6’ bed in linear or gantry, ram lengths 26” and 44”, NMTB40 taper, Spindle 4” travel

Climax PM2000 with Keyway Mill adaptor, 6” to 24” shafts, 20” travel and standard milling

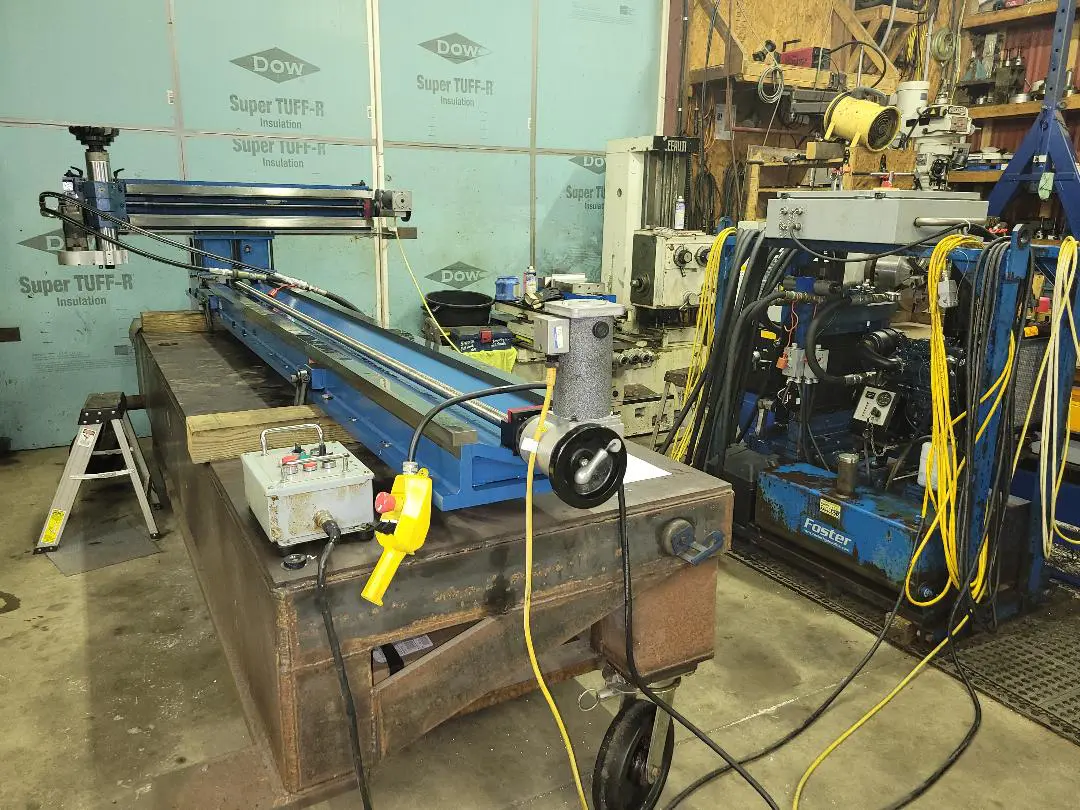

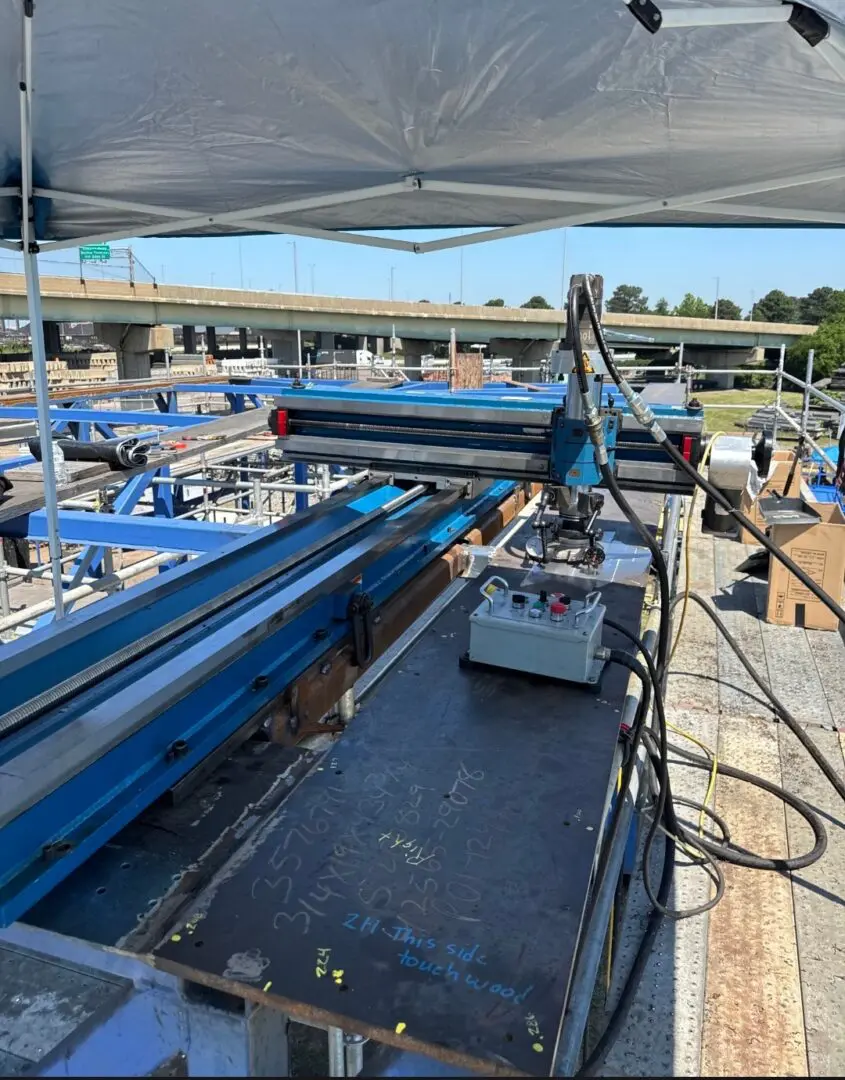

Climax PM6000 bed length 13’4”, travel of 12’, ram length 60”, travel 60”, inversion adaptor to mill overhead

Climax KM300 Key-mill 1 1/2" to 10" shafts, 6" travel

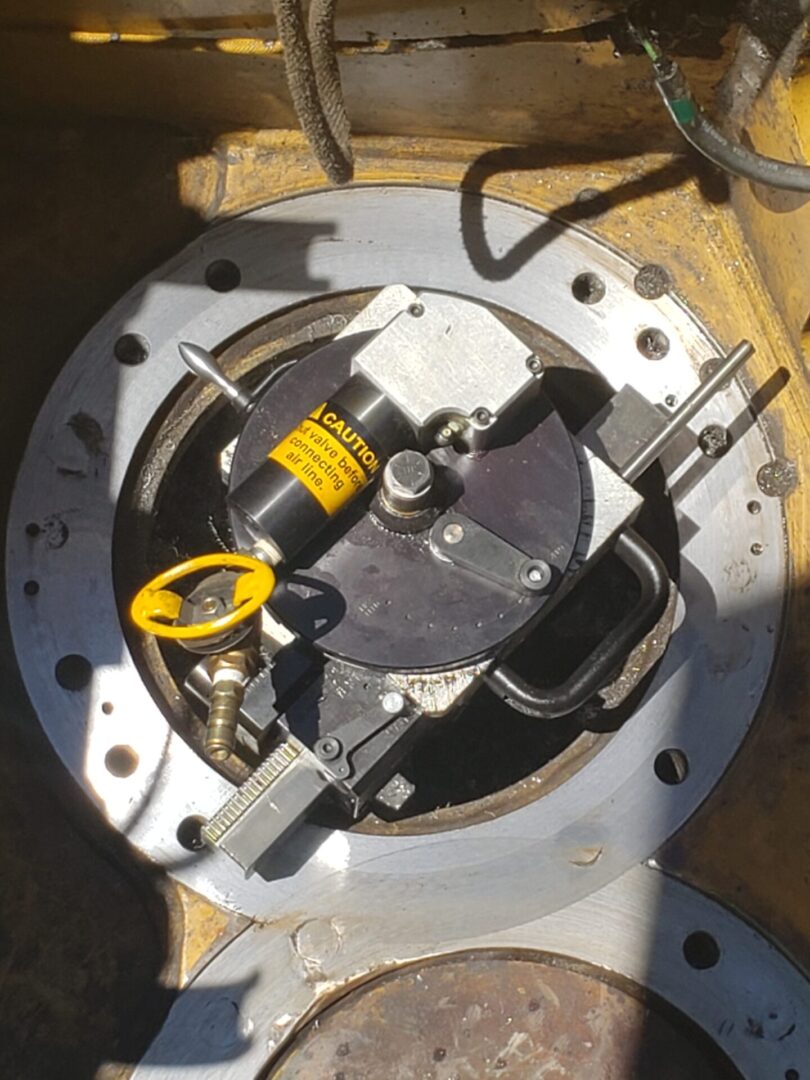

Climax FF5000 diameter of 5” to 24”, Single Point, ID Chuck

Climax FF5300 diameter of 5.7” to 40”, Single Point, ID Chuck, Surface Mount

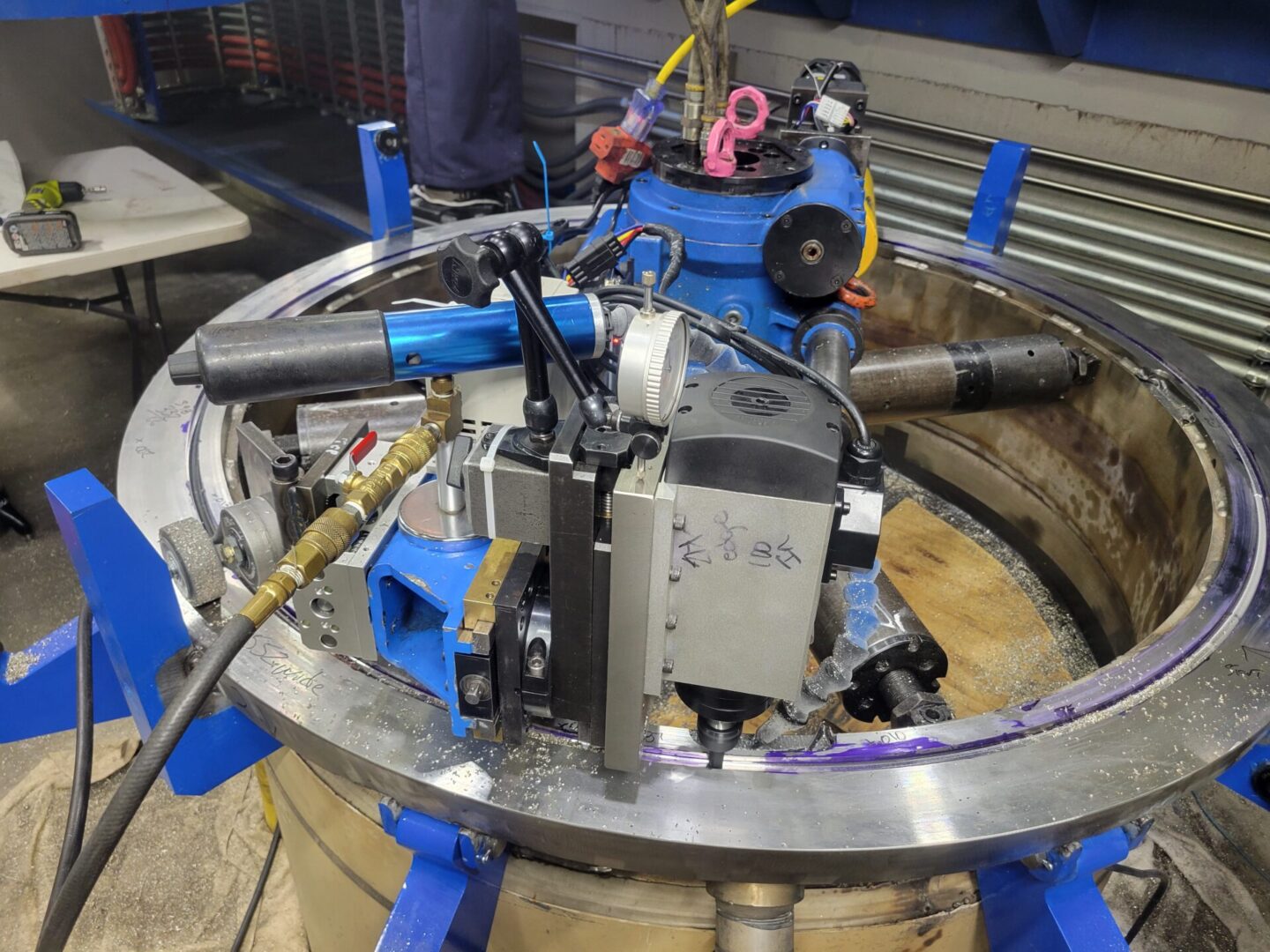

Climax FF6300 diameter of 11.8” to 60”, Single Point and Milling, ID Chuck, Surface Mount

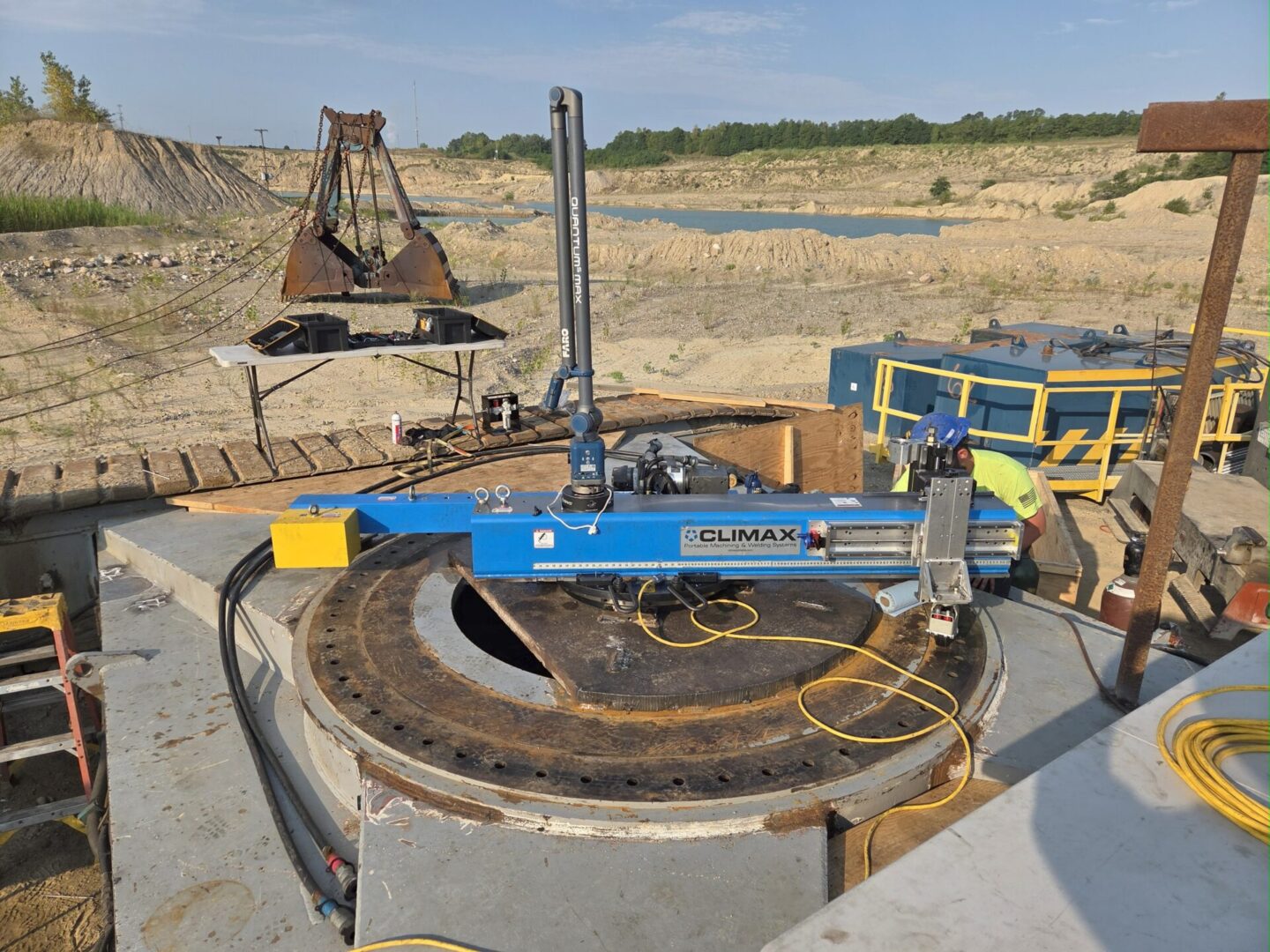

Climax FF8200 diameter of 45” to 120”, Single Point and Milling, ID Chuck, Surface Mount

Climax PL2000 1 ¼” to 9” diameter, 14” travel, end mount

Climax PL4000 8" to 24" diameter, 27" travel, end mount

York 1000 In Line Turning Machine,in line turning lathe, 3” to 10” diameter, 15” travel 4" to 10"

York 1600 In Line Turning Machine, in line turning lathe, 8” to 16” diameter, 27” travel

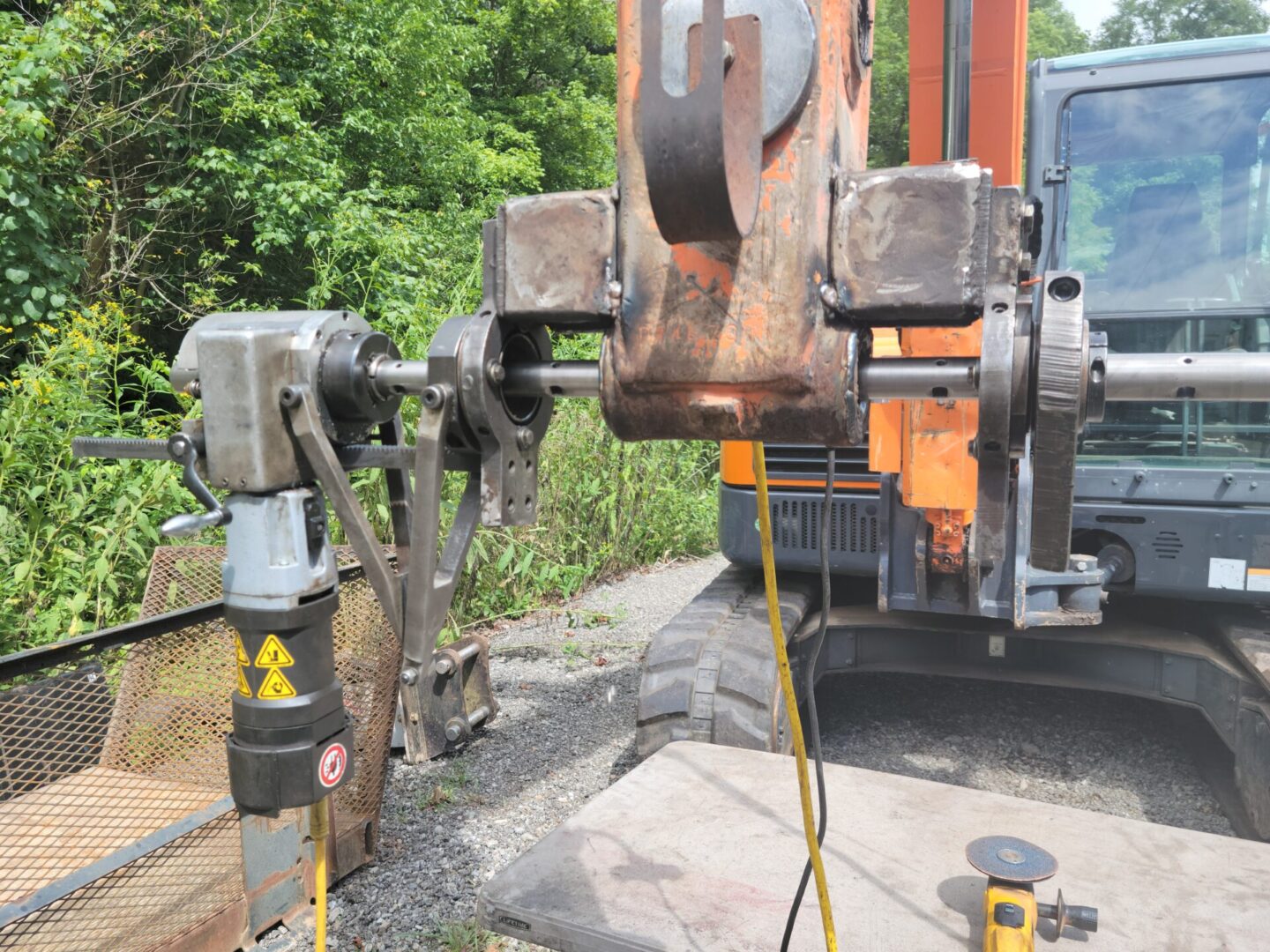

(3) Climax BB3000 with bars out to 8’, 1 1/2 “ to 6” diameter

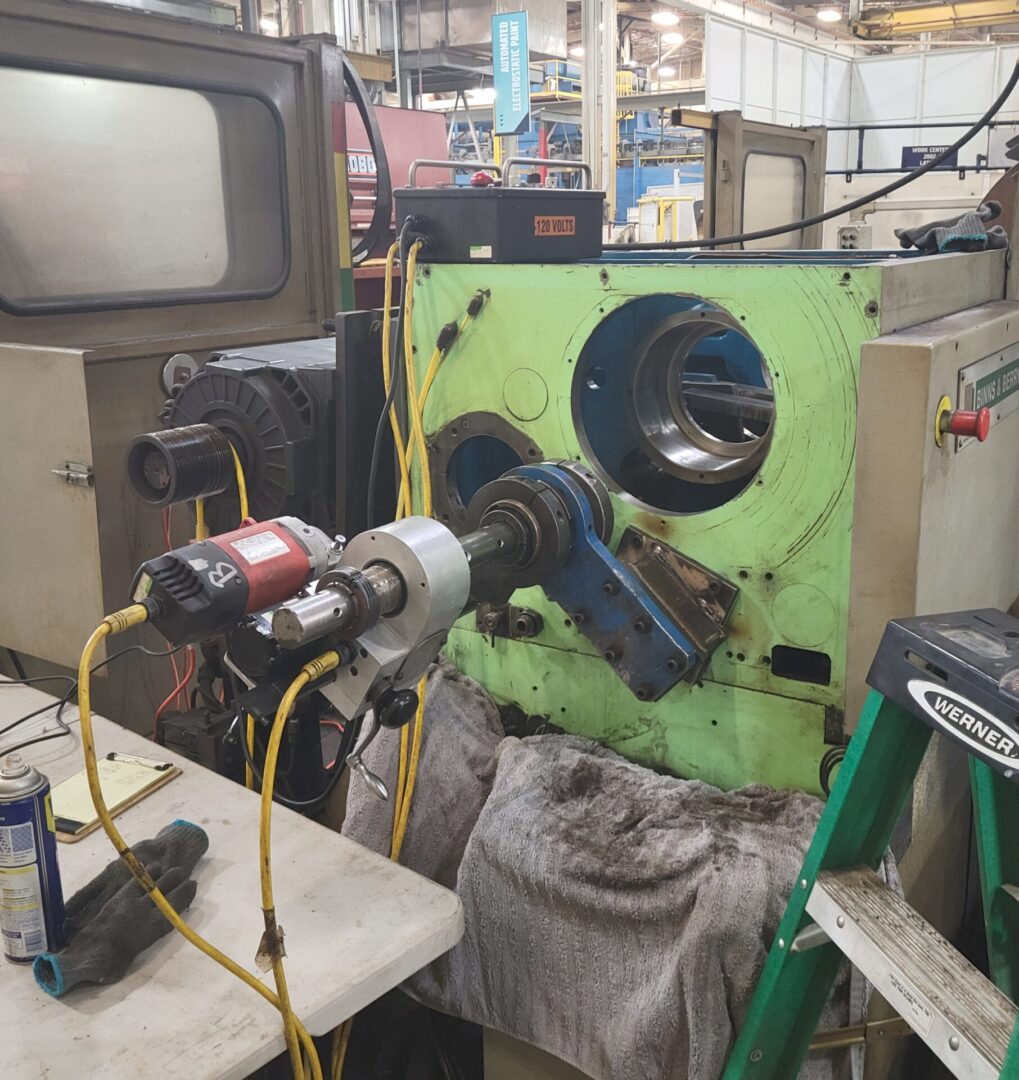

(2) Climax BB4000 with bars out to 8’, 2” to 10” diameter

(2) Climax BB5000 with bars out to 16’, 2 1/2" to 24” diameter, with all accessories for blind bores and facing

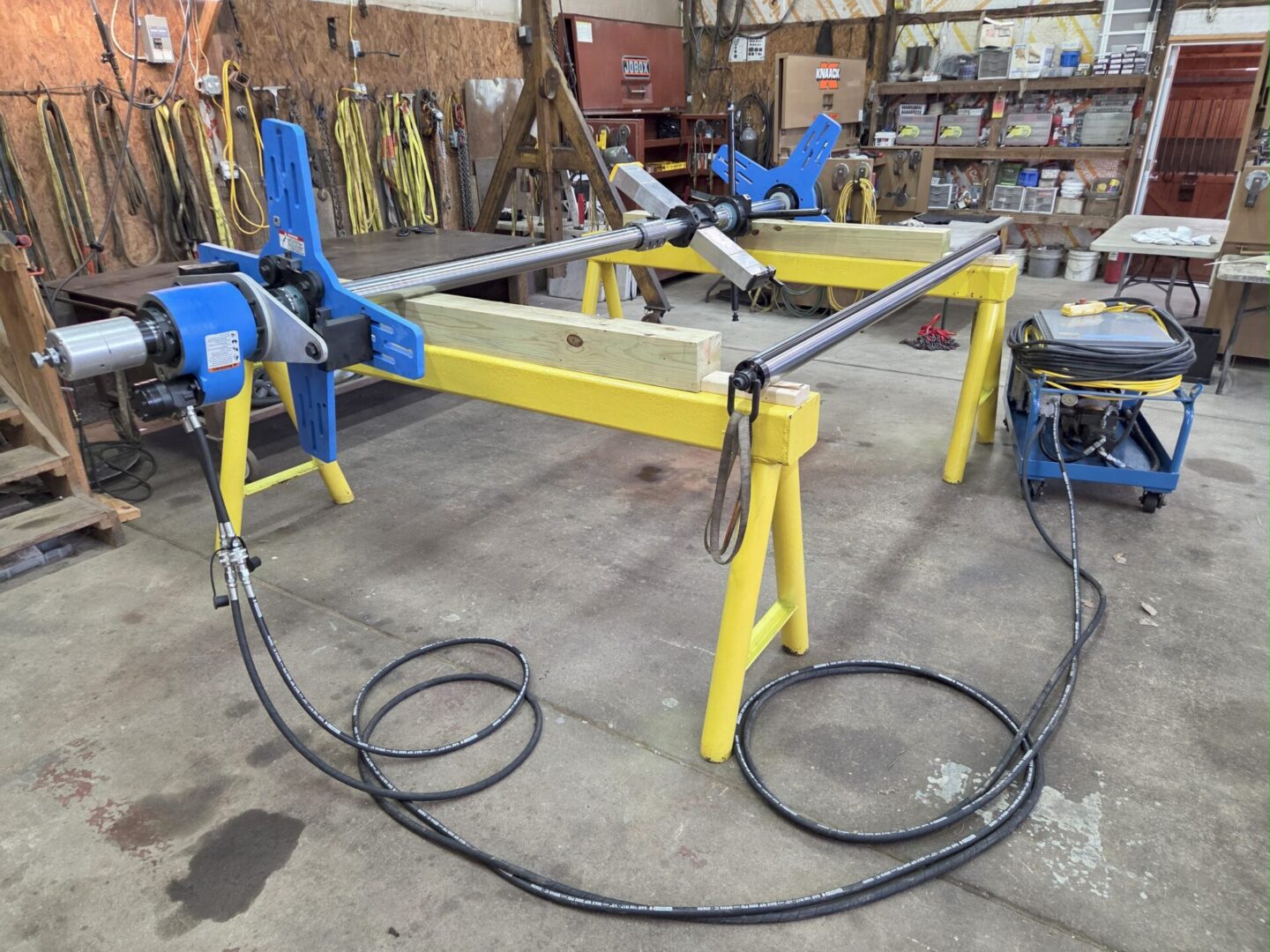

Climax BB6100 with 8’ and 12’ bars, 9” to 40” diameter, ID bearing

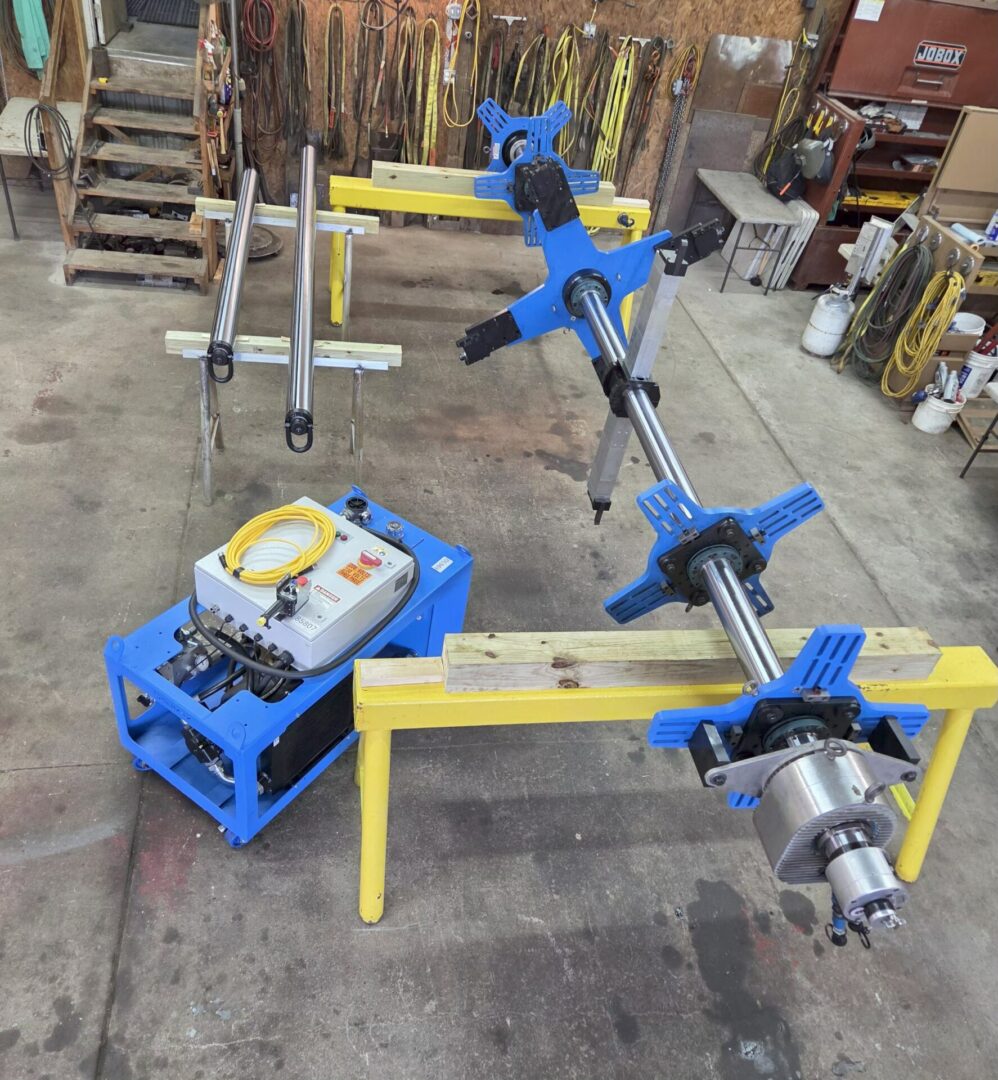

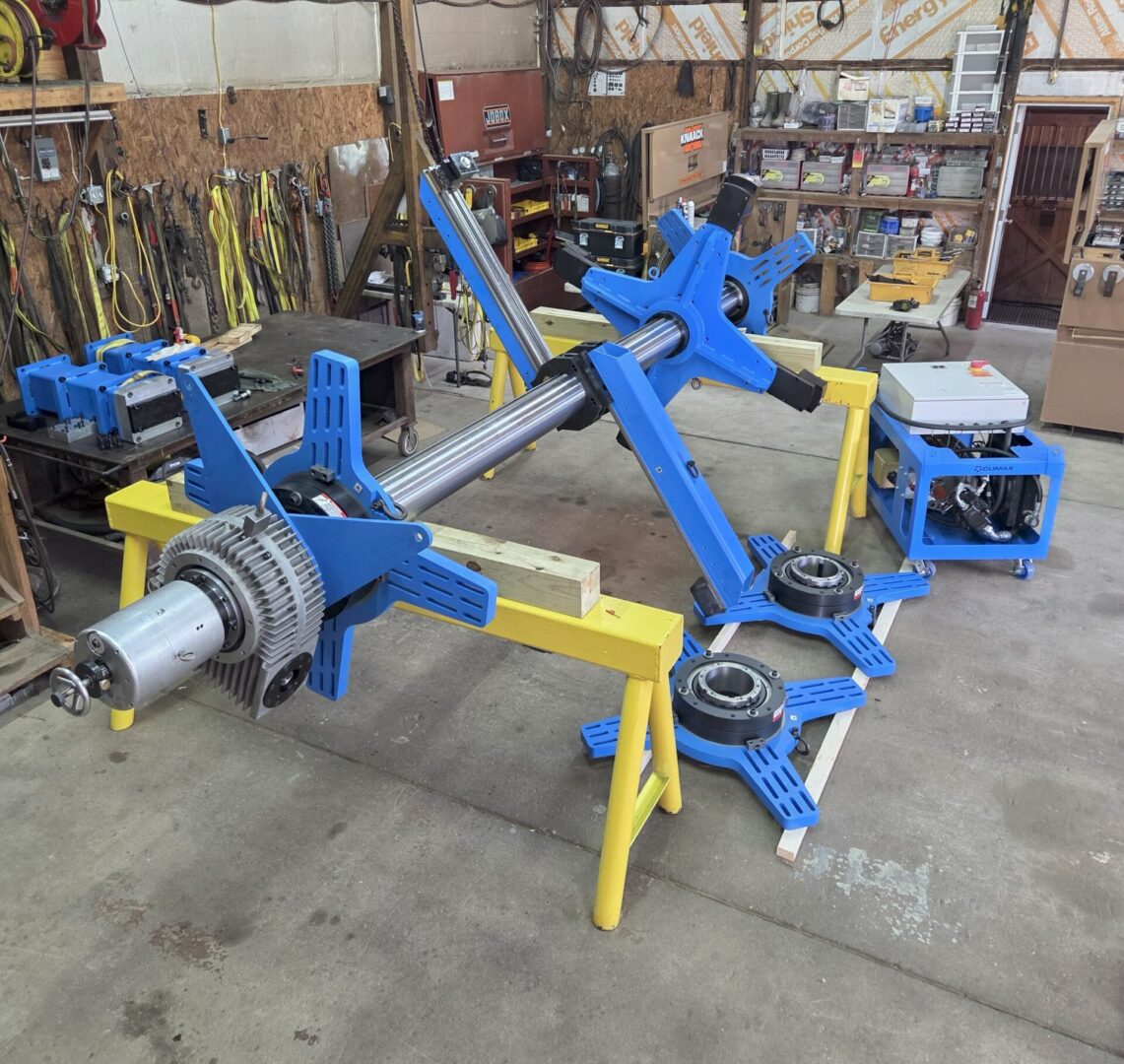

Climax BB7100 with 8’ and 12’ bars, 20’ gun drilled bar, 10 ½” to 60” diameter, 4 four arm bearings, ID bearing, facing head

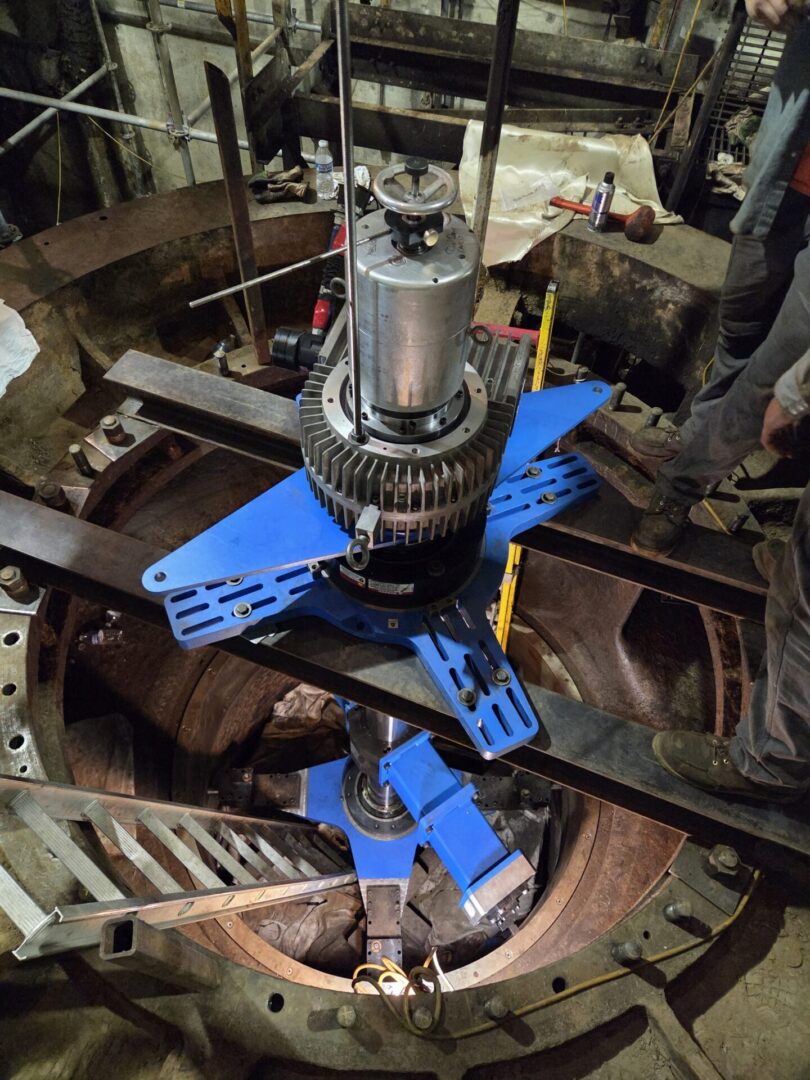

Climax BB8100 with 14’ bar, 15” to 96” diameter, 4 four arm bearings, ID bearing, facing head to 100”

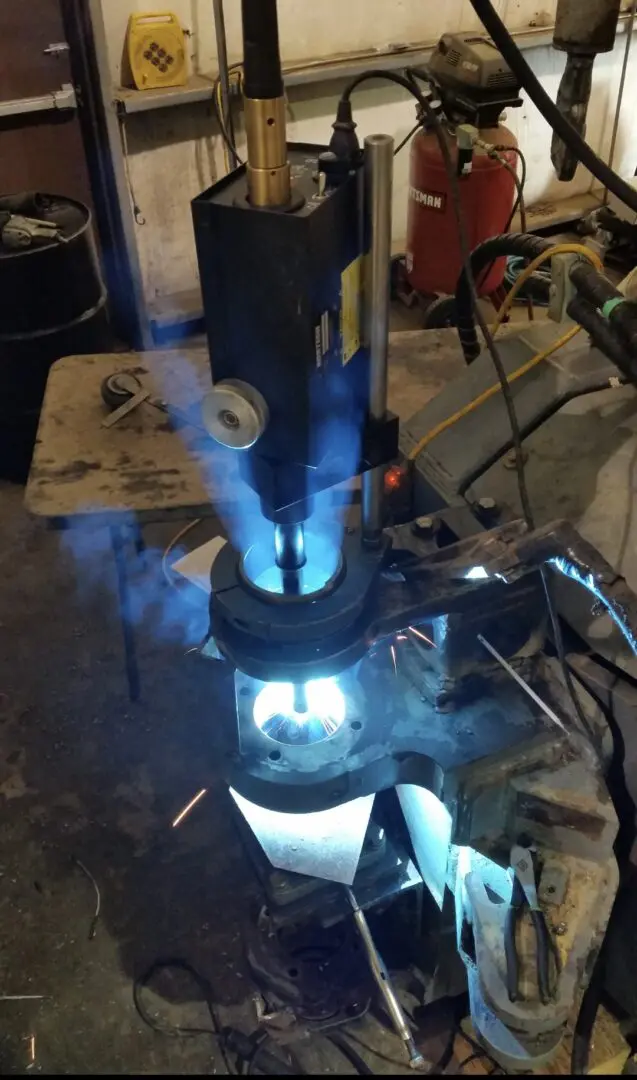

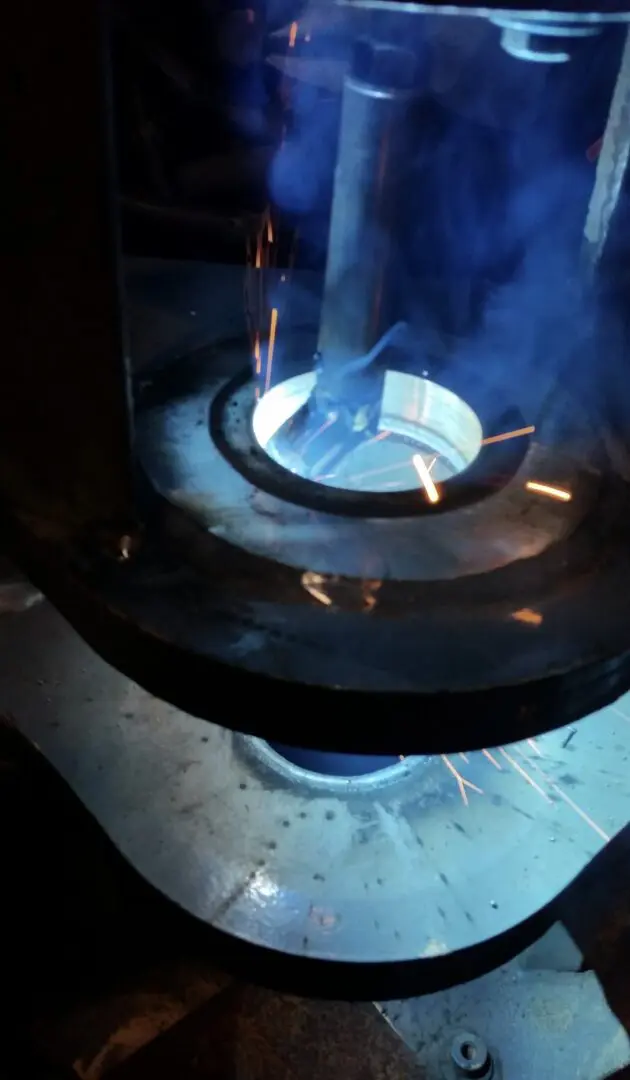

Climax BW1000 axial travel of 9”, 1 ½” to 57” diameter

Climax BW2600 axial travel of 9”, 1 ½” to 57” diameter

Climax BW3000, axial travel of 6”, 1 ½” to 57” diameter

Climax BW3000 axial travel of 12”, 1 ½” to 57” diameter

Climax BW5000, axial and radial travel of 30”, 12” to 120” diameter, ID, OD and conical surfaces
